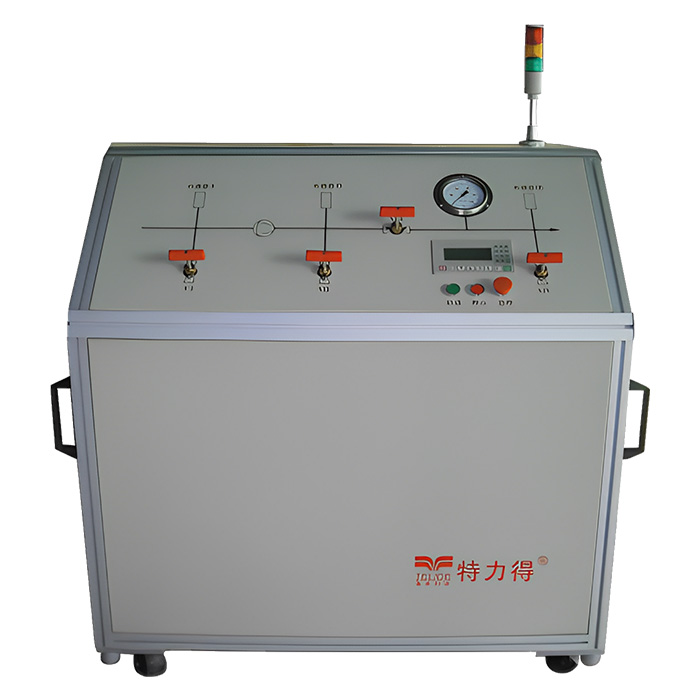

Diaphragm compressor gas pressurization system TPU-SW003
Application
Application for the compression of ultra-high pressure, and ultra-pure gases. Fit for gas pressurization, pneumatic sealing test, and gas research. Output pressure can be adjusted.With over-pressure protection and alarm.
Features
1.Equipped with NOVA SWISS high pressure diaphragm compressor and related components in the square frame. Sealing with panels in all sides. Rear panel can be disassembled;
2.Components include: NOVA SWISS high pressure diaphragm compressor, shut-off valve, unloading valve, safety valve, filter, pressure gauge, PLC, and text display, etc.
Parameters
1.Test medium: inert gases as helium gas and nitrogen gas;
2.Test pressure: inlet 2-200 bar, outlet<1000 bar;
3.Power supply: 380V/50Hz,2.2kW;
4.Dimensions and weight: L1600*W750*H1250(mm),275kg;
5.More: hydrogen gas and oxygen gas is available.
